Inline_hook

[!IMPORTANT]

inline_hook 一般的想法就是替换某个函数的第1个汇编命令 改成 jmp 目标函数的想法

另外需要注意的是 hook 函数与被hook处的函数 的 调用类型 要相同

1.x86 下的Inline hook

x86 下 一般都是使用jmp 指令 ： 5个字节 （0xE9 ** ** ** ** ) 后面四个字节就是偏移地址

#include<stdio.h>
#include<Windows.h>
int WINAPI hookMessageBox(
    _In_opt_ HWND hWnd,
    _In_opt_ LPCWSTR lpText,
    _In_opt_ LPCWSTR lpCaption,
    _In_ UINT uType)
{
    printf("%s;%s\n", lpText, lpCaption);
    return 0;
}
void inlinehook(void* target, void* hook_address) {
    unsigned char jump_hook[10] = { 0 };
    jump_hook[0] = 0xE9;
    int offest = (int)hook_address - (int(target) + 5);
    *(int*)&jump_hook[1] = offest;
    DWORD oldprotect = 0;
    VirtualProtect(target, 4096, PAGE_EXECUTE_READWRITE, &oldprotect);
    memcpy(target, jump_hook, 5);
    VirtualProtect(target, 4096, PAGE_EXECUTE_READWRITE, &oldprotect);
}
int main()
{
    inlinehook(MessageBoxA, hookMessageBox);

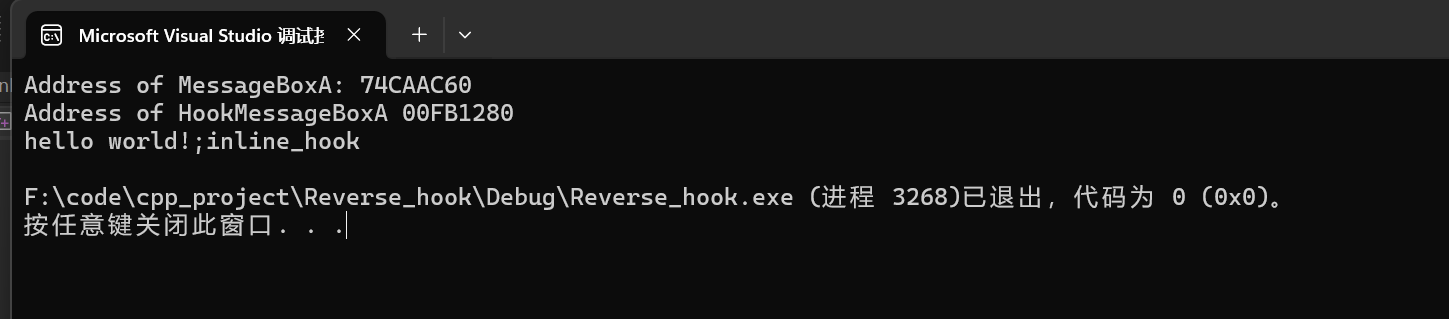

    //void* targetFunction = (void*)MessageBoxA;
    //void* p2 = (void*)hookMessageBox;
    //printf("Address of MessageBoxA: %p\n", targetFunction);
    //printf("Address of HookMessageBoxA %p\n", p2);
    MessageBoxA(NULL, "hello world!", "inline_hook", MB_OK);
    return 0;
}

上面这种inline hook 方式 会 使得 target 处的函数不能正确执行 ，一般是使用下面这种 hook 方式

InlineHook.h

#pragma once

#include <Windows.h>

typedef unsigned char byte;
typedef signed char int8_t;
typedef unsigned char uint8_t;
typedef short int16_t;
typedef unsigned short uint16_t;
typedef int int32_t;
typedef unsigned int uint32_t;
typedef long long int64_t;
typedef unsigned long long uint64_t;
typedef uint32_t boolean_t;

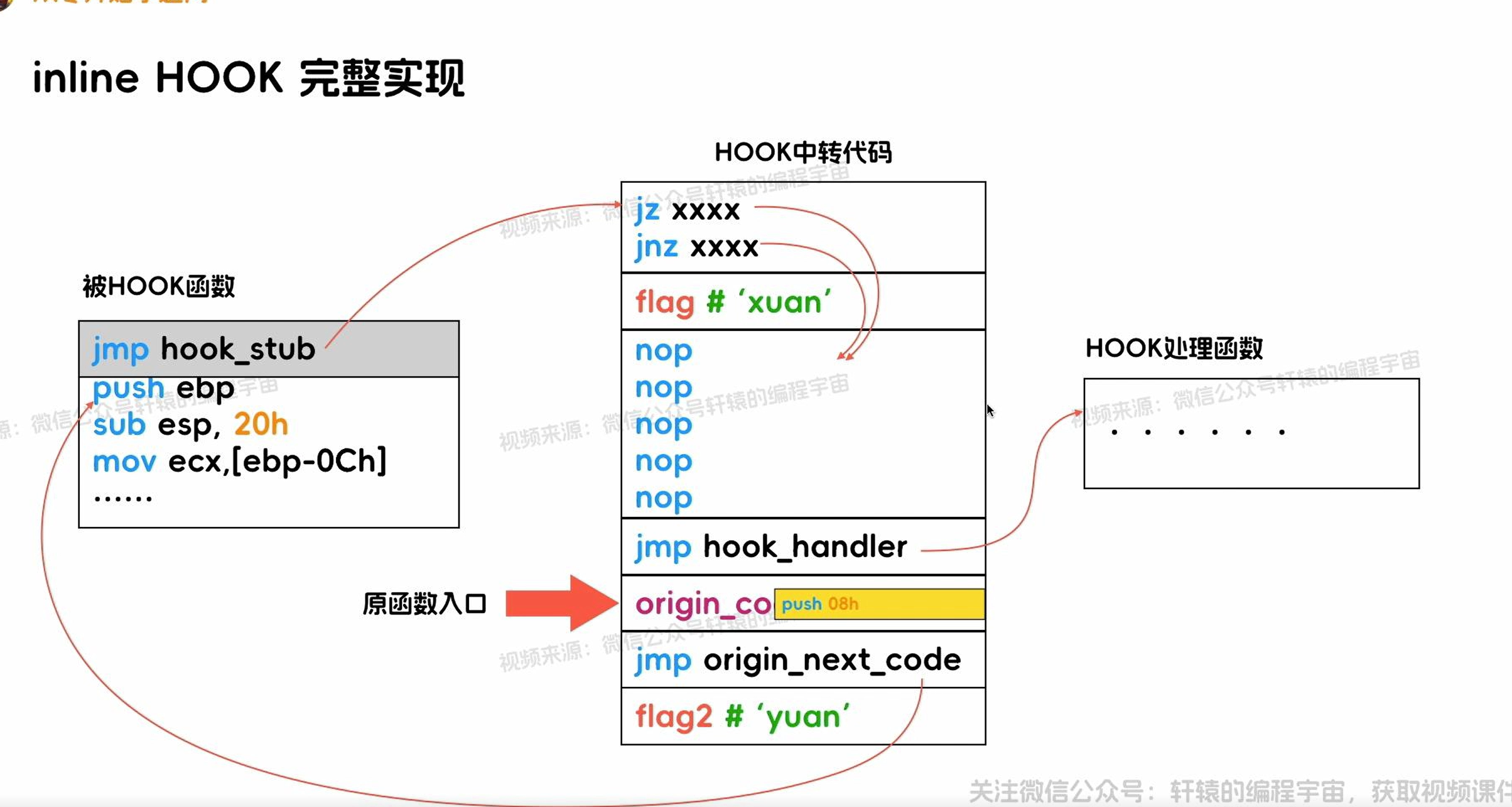

typedef struct _HOOK_STUB
{
	byte jz[2];
	byte jnz[2];
	byte flag[4];
	byte nop[5];
	byte jmp_handler[5];
	byte origin_code[15];
	byte jmp_origin_fun[5];
	byte flag2[4];
}HOOK_STUB, *PHOOK_STUB;


class CInlineHook
{
public:
	CInlineHook();
	~CInlineHook();

	bool InstallHook(const char* ModuleName, const char* ApiName, void* HandlerAddress);
	bool InstallHook(void* TargetAddress, void* HandlerAddress);
	bool UninstallHook();

	void* GetOriginFunction() {
		return m_OriginFunction;
	}


protected:
	//
	// 获取汇编指令长度，用于HOOK
	//
	static int InstructLen(void* Address);
	static const uint8_t c_opinfo[256];


protected:
	void InitHookStub(PHOOK_STUB HookStub);

	PHOOK_STUB m_HookStub;
	void* m_OriginFunction;
	void* m_TargetAddress;
	int m_HookLen;
};

InlineHook.cpp

#include "InlineHook.h"
#include <stdio.h>

/**
* info structure:
*	0x26 means: 6 2 (high-low, low-high)
*
* Bit 0:
*	1 - has ModR/M
*	0 - no ModR/M byte
* Bit 1~3:
*	0 - no imm
*	1 - Ib, Jb
*	2 - Iw
*	3 - Iv, Iz, Jz
*	4 - Ib + Iw
*
* special cases:
*	1. group f6xx, f7xx: nnn = 000,001 -- uses Iz
*	2. 9a, ea: Ap (xxxx:xxxxxxxx), 6-byte imm
*	3. Ob, Ov: 4-byte long offset
*/

const uint8_t CInlineHook::c_opinfo[256] = {
	/*        0 1  2 3  4 5  6 7  8 9  A B  C D  E F  */
	/*       ---------------------------------------  */
	/* 00 */ 0x11, 0x11, 0x26, 0x00, 0x11, 0x11, 0x26, 0x00,
	/* 10 */ 0x11, 0x11, 0x26, 0x00, 0x11, 0x11, 0x26, 0x00,
	/* 20 */ 0x11, 0x11, 0x26, 0x00, 0x11, 0x11, 0x26, 0x00,
	/* 30 */ 0x11, 0x11, 0x26, 0x00, 0x11, 0x11, 0x26, 0x00,
	/* 40 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
	/* 50 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
	/* 60 */ 0x00, 0x11, 0x00, 0x00, 0x67, 0x23, 0x00, 0x00,
	/* 70 */ 0x22, 0x22, 0x22, 0x22, 0x22, 0x22, 0x22, 0x22,
	/* 80 */ 0x37, 0x33, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11,
	/* 90 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
	/* A0 */ 0x00, 0x00, 0x00, 0x00, 0x26, 0x00, 0x00, 0x00,
	/* B0 */ 0x22, 0x22, 0x22, 0x22, 0x66, 0x66, 0x66, 0x66,
	/* C0 */ 0x33, 0x40, 0x11, 0x37, 0x80, 0x40, 0x02, 0x00,
	/* D0 */ 0x11, 0x11, 0x22, 0x00, 0x11, 0x11, 0x11, 0x11,
	/* E0 */ 0x22, 0x22, 0x22, 0x22, 0x66, 0x02, 0x00, 0x00,
	/* F0 */ 0x00, 0x00, 0x00, 0x11, 0x00, 0x00, 0x00, 0x11,
	/*        0 1  2 3  4 5  6 7  8 9  A B  C D  E F  */
	/*       ---------------------------------------  */
	0x11, 0x11, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, /* 0F 00 */
	0x11, 0x11, 0x11, 0x11, 0x10, 0x00, 0x00, 0x01, /* 0F 10 */
	0x11, 0x11, 0x10, 0x10, 0x11, 0x11, 0x11, 0x11, /* 0F 20 */
	0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x00, 0x00, /* 0F 30 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F 40 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F 50 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F 60 */
	0x33, 0x11, 0x11, 0x10, 0x00, 0x00, 0x11, 0x11, /* 0F 70 */
	0x66, 0x66, 0x66, 0x66, 0x66, 0x66, 0x66, 0x66, /* 0F 80 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F 90 */
	0x00, 0x01, 0x31, 0x00, 0x00, 0x01, 0x31, 0x11, /* 0F A0 */
	0x11, 0x11, 0x11, 0x11, 0x00, 0x11, 0x11, 0x11, /* 0F B0 */
	0x11, 0x31, 0x33, 0x31, 0x00, 0x00, 0x00, 0x00, /* 0F C0 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F D0 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, /* 0F E0 */
	0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x11, 0x10  /* 0F F0 */
	/*        0 1  2 3  4 5  6 7  8 9  A B  C D  E F  */
	/*       ---------------------------------------  */
};

enum cpu_mode_t { cm_legacy = -1, cm_compat = 0, cm_64bit = 1 };

int CInlineHook::InstructLen(void* Address)
{
	enum cpu_mode_t cm = cm_compat;
	register uint8_t* p = (uint8_t*)Address;
	register uint8_t b = 0;
	register boolean_t pre_66 = false;
	uint8_t info;
	register int tbl_fixup = 0;
	register uint8_t i_info = 0;
	register uint8_t modrm = 0;

	if (!Address)
		return -1;

	while (1)
	{
		b = *p++;

		if (b >= 0x40 && b <= 0x4f && cm == cm_64bit)
			continue;
		else if (b == 0x66) {
			pre_66 = true;
			continue;
		}
		else if (b == 0xf0 || b == 0xf2 || b == 0xf3 ||
			b == 0x26 || b == 0x2e || b == 0x36 ||
			b == 0x3e || b == 0x64 || b == 0x65 ||
			b == 0x67)
			continue;
		break;
	}

	if (b == 0x0f) {
		b = *p++;
		tbl_fixup = 128;
	}

	info = c_opinfo[(b >> 1) + tbl_fixup];
	info = ((b % 2) ? info : (info >> 4)) & 0x0f;
	i_info = (info >> 1) & 7;

	if (info & 0x01) {
		/* has modrm */
		modrm = *p++;
		do {
			register uint8_t sib = 0;
			boolean_t has_sib = false;
			register uint8_t tmp = 0;

			if ((modrm & 0xc0) == 0xc0)	/* mod == 3 */
				break;

			if (cm != cm_legacy && (modrm & 0x07) == 4) {
				has_sib = true;
				sib = *p++;
			}
			/* displacement */
			tmp = has_sib ? sib : modrm;
			if (!(modrm & 0xc0)) {	/* mod == 00b */
				if ((tmp & 0x07) == 5)
					p += (cm == cm_legacy) ? 2 : 4;
			}
			else if ((modrm & 0xc0) == 0x40) {	/* mod == 01b */
				++p;
			}
			else {	/* mod == 0x10b */
				p += (cm == cm_legacy) ? 2 : 4;
			}
		} while (0);
	}

	/* special cases */
	do
	{
		register uint8_t tmp = (modrm & 0x38) >> 3;	/* nnn */
		if (tmp == 0 || tmp == 1) {
			if (b == 0xf6)
				i_info |= 1;
			else if (b == 0xf7)
				i_info |= 3;	/* Iz */
		}
		if (b == 0x9a || b == 0xea)	/* Ap */
			p += 6;
		if (b >= 0xa0 && b <= 0xa3)
			p += 4;

	} while (0);

	/* take care of immediate value */
	switch (i_info) {
	case 0:	break;
	case 1:	++p; break;
	case 2:	p += 2;	break;
	case 3:	p += pre_66 ? 2 : 4; break;
	case 4:	p += 3;	break;
	}

	return (int)(p - (uint8_t*)Address);
}



CInlineHook::CInlineHook()
{
	m_HookStub = NULL;
	m_OriginFunction = NULL;
	m_TargetAddress = NULL;
	m_HookLen = 0;
}


CInlineHook::~CInlineHook()
{
	if (m_HookStub)
	{
		delete m_HookStub;
		m_HookStub = NULL;
	}
}

void CInlineHook::InitHookStub(PHOOK_STUB HookStub)
{
	if (HookStub == NULL)
	{
		return;
	}

	ZeroMemory(HookStub, sizeof(HOOK_STUB));
	HookStub->jz[0] = 0x74;
	HookStub->jz[1] = 0x06;
	HookStub->jnz[0] = 0x75;
	HookStub->jnz[1] = 0x04;
	memcpy(HookStub->flag, "xuan", sizeof(HookStub->flag));
	memset(HookStub->nop, 0x90, sizeof(HookStub->nop));
	HookStub->jmp_handler[0] = 0xE9;
	memset(HookStub->origin_code, 0x90, sizeof(HookStub->origin_code));
	HookStub->jmp_origin_fun[0] = 0xE9;
	memcpy(HookStub->flag2, "yuan", sizeof(HookStub->flag2));
}

bool CInlineHook::InstallHook(const char* ModuleName, const char* ApiName, void* HandlerAddress)
{
	HMODULE hModule = NULL;
	void* targetAddress = NULL;
	bool bRet = false;

	do
	{
		hModule = GetModuleHandleA(ModuleName);
		if (!hModule)
			break;

		targetAddress = GetProcAddress(hModule, ApiName);
		if (!targetAddress)
			break;

		bRet = InstallHook(targetAddress, HandlerAddress);

	} while (false);

	return bRet;
}

bool CInlineHook::InstallHook(void* TargetAddress, void* HandlerAddress)
{
	DWORD OldPageProperty = 0;

	if (TargetAddress == NULL || HandlerAddress == NULL || m_HookStub)
	{
		return false;
	}

	//
	// 计算要HOOK的字节长度
	//
	int hook_len = 0;
	uint8_t* start_address = (uint8_t*)TargetAddress;
	while (hook_len < 5)
	{
		int instruct_len = InstructLen(start_address);
		if (instruct_len <= 0 || instruct_len >= 10)
			break;

		hook_len += instruct_len;
		start_address += instruct_len;
	}

	//
	// 分配中间跳指令区，并设置可执行属性
	//
	m_HookStub = new HOOK_STUB();
	if (m_HookStub == NULL)
	{
		return false;
	}
	if (!VirtualProtect(m_HookStub, sizeof(HOOK_STUB), PAGE_EXECUTE_READWRITE, &OldPageProperty))
	{
		delete m_HookStub;
		m_HookStub = NULL;
		return false;
	}

	//
	// 准备hook中间跳转指令
	//
	InitHookStub(m_HookStub);
	memcpy(m_HookStub->origin_code, TargetAddress, hook_len);
	*((unsigned long *)(&m_HookStub->jmp_handler[1])) = (unsigned long)HandlerAddress - ((unsigned long)&m_HookStub->jmp_handler + 5);
	*((unsigned long *)(&m_HookStub->jmp_origin_fun[1])) = ((unsigned long)TargetAddress + hook_len) - ((unsigned long)&m_HookStub->jmp_origin_fun + 5);


	//
	// 准备Hook目标入口跳转指令
	//
	byte jmp_entry[20] = { 0 };
	memset(jmp_entry, 0x90, sizeof(jmp_entry));
	jmp_entry[0] = 0xE9;
	*((unsigned long*)(&jmp_entry[1])) = (unsigned long)m_HookStub - ((unsigned long)TargetAddress + 5);

	//
	// 开始安装钩子
	//
	OldPageProperty = 0;
	VirtualProtect(TargetAddress, hook_len, PAGE_READWRITE, &OldPageProperty);
	memcpy(TargetAddress, jmp_entry, hook_len);
	VirtualProtect(TargetAddress, hook_len, OldPageProperty, &OldPageProperty);

	m_OriginFunction = &m_HookStub->origin_code;
	m_TargetAddress = TargetAddress;
	m_HookLen = hook_len;
	return true;
}

bool CInlineHook::UninstallHook()
{
	if (m_HookStub == NULL)
	{
		return false;
	}

	DWORD OldPageProperty = 0;

	VirtualProtect(m_TargetAddress, m_HookLen, PAGE_READWRITE, &OldPageProperty);
	memcpy(m_TargetAddress, m_HookStub->origin_code, m_HookLen);
	VirtualProtect(m_TargetAddress, m_HookLen, OldPageProperty, &OldPageProperty);

	delete m_HookStub;
	m_HookStub = NULL;

	return true;

}

Test.cpp

// Test.cpp : 定义控制台应用程序的入口点。
//

#include <Windows.h>
#include "InlineHook.h"

#include <map>
#include <string>
using namespace std;

map<string, CInlineHook*> hookTable;

typedef int (WINAPI *PFN_MessageBoxA) (
						  __in_opt HWND hWnd,
						  __in_opt LPCSTR lpText,
						  __in_opt LPCSTR lpCaption,
						  __in UINT uType);
int WINAPI HookMessageBoxA(
				__in_opt HWND hWnd,
				__in_opt LPCSTR lpText,
				__in_opt LPCSTR lpCaption,
				__in UINT uType)
{
	printf("%s: %s\n", lpText, lpCaption);

	CInlineHook* hook = hookTable["MessageBoxA"];

	PFN_MessageBoxA pfn_MessageBoxA = (PFN_MessageBoxA)hook->GetOriginFunction();

	pfn_MessageBoxA(hWnd, lpText, lpCaption, uType);

	return 0;
}

int _tmain(int argc, _TCHAR* argv[])
{

    CInlineHook hook;

    hook.InstallHook("user32.dll", "MessageBoxA", HookMessageBoxA);
	hookTable.insert(pair<string, CInlineHook*>("MessageBoxA", &hook));

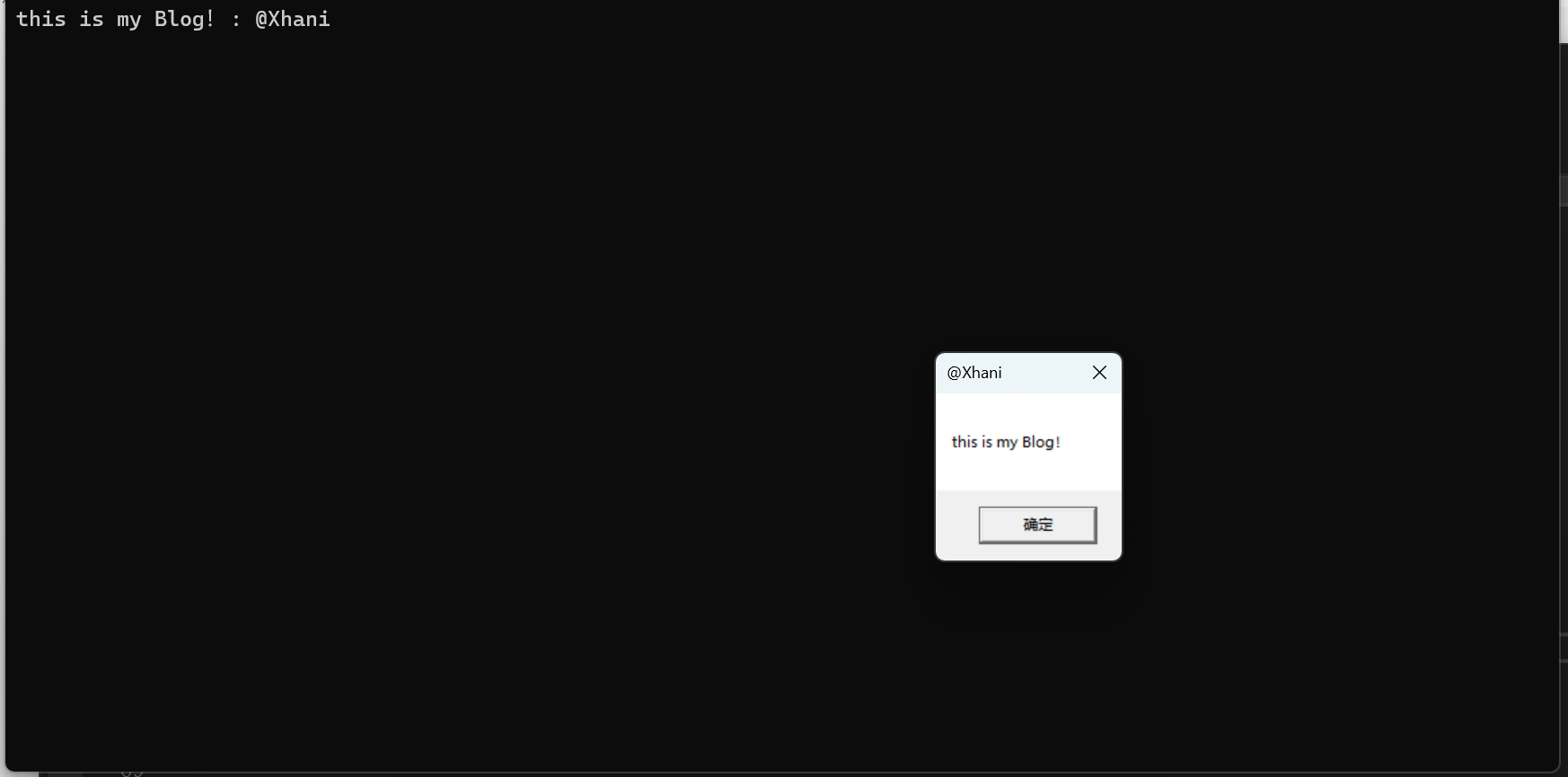

	MessageBoxA(NULL, "this is my Blog!", "@Xhani", MB_OK);
	hookTable["MessageBoxA"]->UninstallHook();
	return 0;
}

此hook 方法不会 影响原函数的正确 执行

Todo1.编程实现HOOK WriteFile 这个Windows API，实现每次调用这个函数的时候，在写入的数据后面增加一个字符串:”xhani!!!”。然后程序里尝试打开一个文件，并写入一些数据，最后打开文件看看是否有这个字符串内容。

Todo1.cpp

1.方法一

// Todo1.cpp : 定义控制台应用程序的入口点。
//
#include <Windows.h>
#include "InlineHook.h"
#include<string.h>

#include <map>
#include <string>
using namespace std;

map<string, CInlineHook*> hookTable;

typedef
BOOL
(WINAPI* PFN_WriteFile)(
	_In_ HANDLE hFile,
	_In_reads_bytes_opt_(nNumberOfBytesToWrite) LPCVOID lpBuffer,
	_In_ DWORD nNumberOfBytesToWrite,
	_Out_opt_ LPDWORD lpNumberOfBytesWritten,
	_Inout_opt_ LPOVERLAPPED lpOverlapped);

BOOL
WINAPI
HookWriteFile(
	_In_ HANDLE hFile,
	_In_reads_bytes_opt_(nNumberOfBytesToWrite) LPCVOID lpBuffer,
	_In_ DWORD nNumberOfBytesToWrite,
	_Out_opt_ LPDWORD lpNumberOfBytesWritten,
	_Inout_opt_ LPOVERLAPPED lpOverlapped
)
{
	CInlineHook* hook = hookTable["WriteFile"];

	const char  str[] = "Xhani!!!";
	size_t len = strlen(str) + nNumberOfBytesToWrite;
	char *newbuffer=(char *)malloc(len+1);
	if (newbuffer == NULL) return false;
	memcpy(newbuffer,lpBuffer,nNumberOfBytesToWrite);
	memcpy(newbuffer+nNumberOfBytesToWrite-1, str, strlen(str)+1);
	nNumberOfBytesToWrite += strlen(str);

	PFN_WriteFile pfn_WriteFile = (PFN_WriteFile)hook->GetOriginFunction();

	pfn_WriteFile(hFile, newbuffer, nNumberOfBytesToWrite, lpNumberOfBytesWritten, lpOverlapped);
	return true;
}


int _tmain(int argc, _TCHAR* argv[])
{
	HANDLE hFile = CreateFile(
		L"example.txt",            // 文件名
		GENERIC_WRITE,           // 写入访问权限
		0,                       // 不共享
		NULL,                    // 默认安全性
		CREATE_ALWAYS,          // 如果文件存在则覆盖
		FILE_ATTRIBUTE_NORMAL,   // 普通文件
		NULL                     // 无模板文件
	);
	CInlineHook hook;
	hook.InstallHook("kernel32.dll", "WriteFile", HookWriteFile);

	hookTable.insert(pair<string, CInlineHook*>("WriteFile", &hook));

	char buffer[]="1112211213";
	//fgets(buffer, sizeof(buffer), stdin);
	DWORD bytesWritten;

	WriteFile(hFile, buffer,sizeof(buffer),&bytesWritten,NULL);

	hookTable["WriteFile"]->UninstallHook();
	CloseHandle(hFile);
	return 0;
}

2.方法二

// 使用backup  拷贝修改处的指令
#include<windows.h>
#include<stdio.h>
#include<stdlib.h>
#include<string.h>

void* Backup;
#define BUFFER_SIZE  1024

void inline_hook(void* target, void* hook_address, void* Backup);
void uninstall_hook(void* target, void* backup);

BOOL WINAPI hookWriteFile(
     HANDLE hFile,
    LPCVOID lpBuffer,
     DWORD nNumberOfBytesToWrite,
     LPDWORD lpNumberOfBytesWritten,
     LPOVERLAPPED lpOverlapped
)
{
    uninstall_hook(WriteFile,Backup);

    char str[] = "Xhani!!!!!";
    size_t NewSize = strlen(str) + nNumberOfBytesToWrite;
    char* buffer = (char*)malloc(NewSize+1);
    if (buffer == NULL) return false;
    memcpy(buffer,lpBuffer ,nNumberOfBytesToWrite);
    memcpy(buffer + nNumberOfBytesToWrite, str,strlen(str)+1);
    nNumberOfBytesToWrite += strlen(str);

    bool success = WriteFile(hFile, buffer, nNumberOfBytesToWrite, lpNumberOfBytesWritten, lpOverlapped);

    inline_hook(WriteFile,hookWriteFile,Backup);//  安装钩子，确保下次是调用到钩子
    return success;
}
void inline_hook(void* target, void* hook_address,void *Backup)
{
    unsigned char jump_Code[10] = { 0 };
    jump_Code[0] = 0xE9;
    int offest = (int)hook_address - (int)target - 5;
    *(int*)&jump_Code[1] = offest;
    DWORD oldproperty = 0;
    VirtualProtect(target, sizeof(jump_Code), PAGE_EXECUTE_READWRITE, &oldproperty);
    memcpy(Backup, target, 5);
    memcpy(target, jump_Code, 5);
    VirtualProtect(target, sizeof(jump_Code), oldproperty, &oldproperty);
    return;
}

void uninstall_hook(void* target, void* backup) {
    DWORD oldproperty = 0;
    VirtualProtect(target, 4096, PAGE_EXECUTE_READWRITE, &oldproperty);
    memcpy(target, backup, 5);
    VirtualProtect(target, 4096, oldproperty, &oldproperty);
    return;
}
int main()
{
    HANDLE hFile = CreateFile(
        L"example.txt",            // 文件名
        GENERIC_WRITE,           // 写入访问权限
        0,                       // 不共享
        NULL,                    // 默认安全性
        CREATE_ALWAYS,          // 如果文件存在则覆盖
        FILE_ATTRIBUTE_NORMAL,   // 普通文件
        NULL                     // 无模板文件
    );
    Backup = malloc(5);
    if (hFile != INVALID_HANDLE_VALUE) {
        DWORD bytesWritten; // 实际写入的字节数
        char buffer[] = "123456";
        inline_hook(WriteFile, hookWriteFile,Backup);
        WriteFile(hFile, buffer, strlen(buffer), &bytesWritten, NULL);
    }
    CloseHandle(hFile);
    free(Backup);
    return 0;
}

2.x64 位下的Inline hook

需要注意的是x64 下的 jmp 指令实际是 14个字节(间接跳转) ： jmp指令(FF 25)+ offest1(4字节)+0ffest2(8字节) [因为64位下寻址更慢]

[!NOTE]

首先是计算出 jmp + offset1 的地址p1 ,然后寻址到p1处，在计算出p1+offest2 ,即为目标地址

#include<stdio.h>
#include<Windows.h>
void sh() {
    printf("true");
    return;
}
void sa()
{
    printf("false");
    return;
}
void inlinehook(__int64* target, __int64* hook_address) {
    char jump_hook[14] = {0xFF,0x25,00,00,00,00,00,00,00,00,00,00,00,00 };
    __int64* p = (_int64*)&hook_address;
    memcpy(jump_hook + 6,p , sizeof(void*));
 	//char jump_hook[] = {0xFF,0x25,0x01,00,00,00,00,00,00,00,00,00,00,00,00 };
 	//__int64* p = (_int64*)&hook_address;
 	//memcpy(jump_hook + 7,p , sizeof(void*));
    DWORD oldprotect = 0;
    VirtualProtect(target, sizeof(jump_hook), PAGE_EXECUTE_READWRITE, &oldprotect);
    memcpy(target, jump_hook, sizeof(jump_hook));
    VirtualProtect(target, sizeof(jump_hook), oldprotect, &oldprotect);
    return;
}

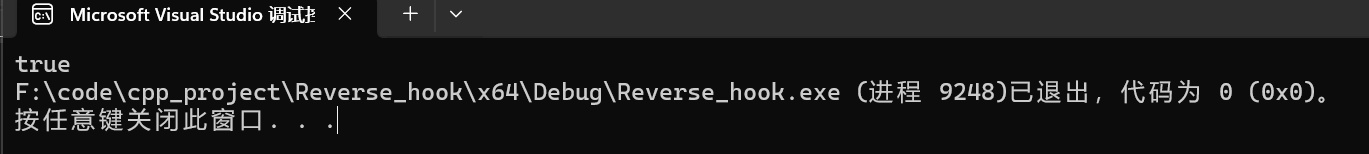

int main()
{
    inlinehook((__int64 *)sa,(_int64 *)sh);
    sa();
    return 0;
}
